High-strength Hylam Sheet made from phenolic resin bonded with cotton fabric. Ideal for electrical insulation, wear-resistant parts & structural use.

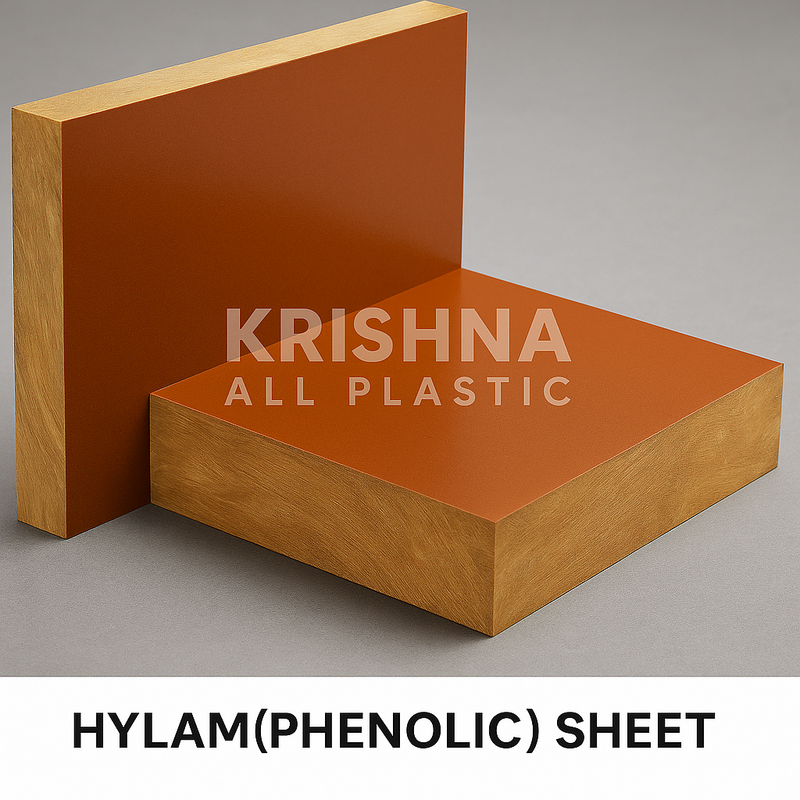

Hylam Sheets, also known as Phenolic Cotton Cloth Laminate Sheets, are premium-grade thermoset plastic laminates made by impregnating layers of cotton fabric with phenolic resin under high pressure and temperature.
These sheets combine excellent mechanical strength with high dielectric properties, making them suitable for electrical insulation, machined parts, and wear-resistant components.
The fabric reinforcement enhances load-bearing capacity, shock resistance, and dimensional stability — far superior to paper-based laminates.
Key Features:
-
✔️ Excellent mechanical strength & rigidity
-
✔️ High electrical insulation resistance
-
✔️ Wear & abrasion-resistant surface
-
✔️ Machinable – turns, mills & drills cleanly
-
✔️ Good thermal resistance
-
✔️ Low moisture absorption
-
✔️ Vibration-damping & noise-reducing
-
✔️ Economical alternative to metals and thermoplastics
Applications:
-
Electrical panels & switchgear
-
Machined parts – bushes, pulleys, washers
-
Gears, spacers, jigs & fixtures
-
Terminal boards & mounting plates
-
Textile & paper machine parts
-
Transformer insulation components
Specifications Available:
-
Size: 1220 mm x 1220 mm / 1220 mm x 2440 mm
-
Thickness Range: 1 mm to 100 mm
-
Color: Brown / Reddish Brown
-
Grade: IS 2036 / NEMA C / F grade available
-
Finish: Glossy or Matte (on request)
Material Properties:
-
Density: ~1.35–1.45 g/cm³
-
Dielectric Strength: 9–15 kV/mm
-
Temperature Resistance: Up to 120°C
-
Hardness: Rockwell M100
-
Flame Resistance: Moderate (self-extinguishing)
✅ Long life in harsh industrial environments
✅ Can be turned, milled, drilled, cut, and finished
✅ In-stock in multiple thicknesses – ready to ship
