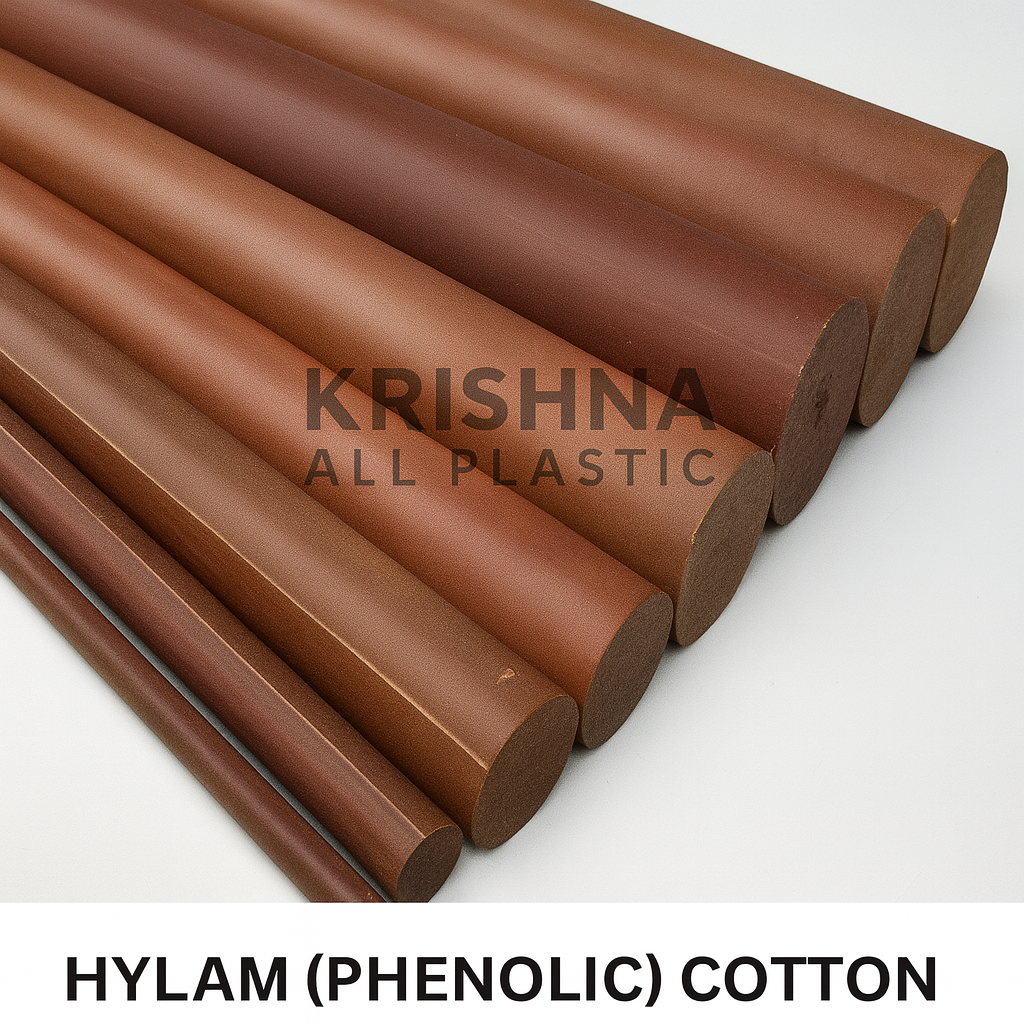

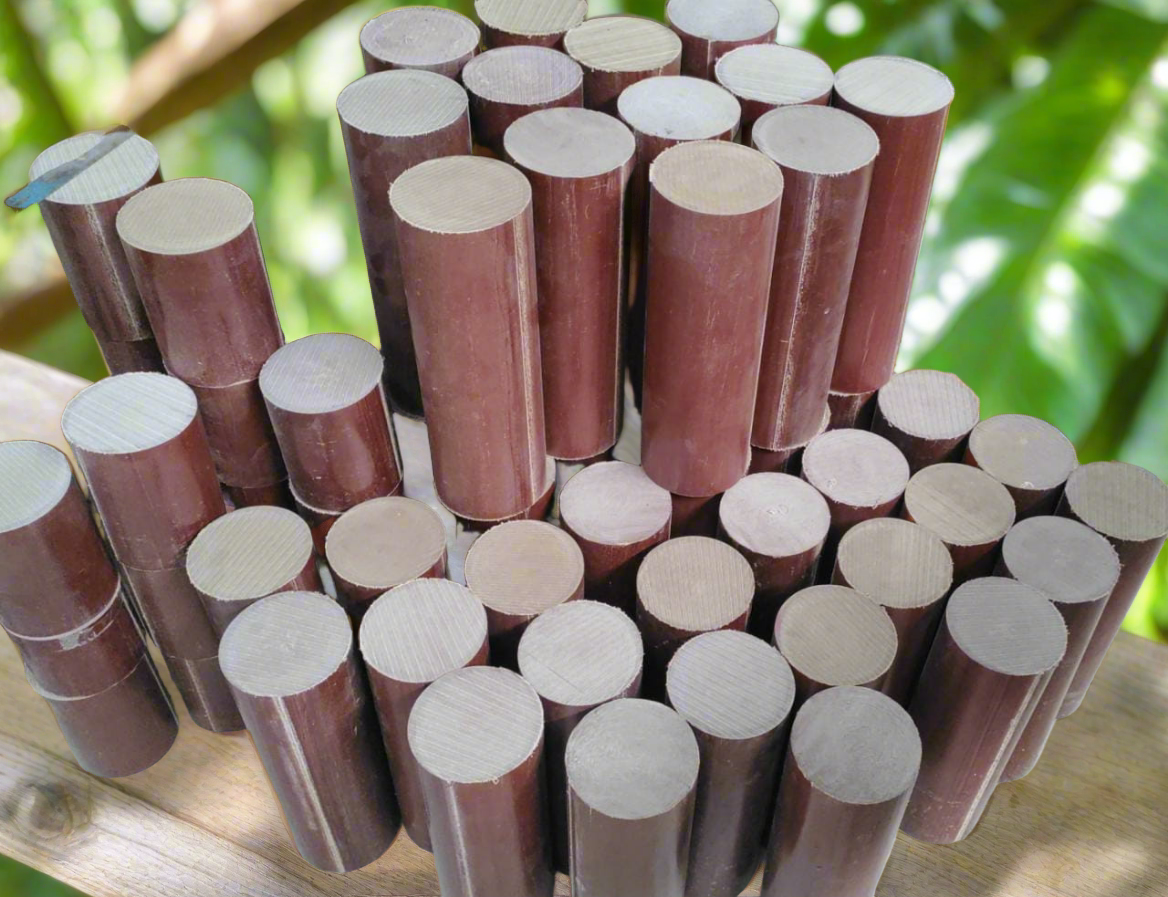

Hylam Fabric Rod – Phenolic Laminated Rod

Our Hylam Fabric Rod, also known as Phenolic Rod, is a composite engineering plastic manufactured from layers of woven cotton fabric bonded with phenolic resin under high pressure and heat. This process produces a dense, rigid material with excellent mechanical and electrical insulating properties.

Key Features:

• ✔️ High mechanical strength and rigidity

• ✔️ Excellent electrical insulation properties

• ✔️ Superior machinability – lathe, CNC, drilling

• ✔️ Low friction and good dimensional stability

• ✔️ Resistant to oil, solvents, and moderate chemicals

• ✔️ Good thermal resistance

• ✔️ Flame retardant grade available (on request)

• ✔️ Working temperature: Up to 120°C continuous use

Applications:

• Terminal boards and insulating parts

• Mechanical bushes and wear parts

• Gears, pulleys, and jigs

• Electrical switchgear and control panels

• Transformer insulation spacers

• Automotive and textile machinery components

Specifications:

• Diameter: 10 mm to 150 mm

• Length: Standard 1 meter

• Color: Brown (classic Hylam color)

• Material Base: Cotton Fabric + Phenolic Resin

Material Properties:

• Density: ~1.35 g/cm³

• Dielectric strength: ~9–12 kV/mm

• Hardness: Shore D 85+

• Tensile Strength: ~100 MPa

📦 Ready stock available for standard sizes
🛠️ Custom machining / cutting service available
📞 Bulk inquiries and OEM supply welcome
